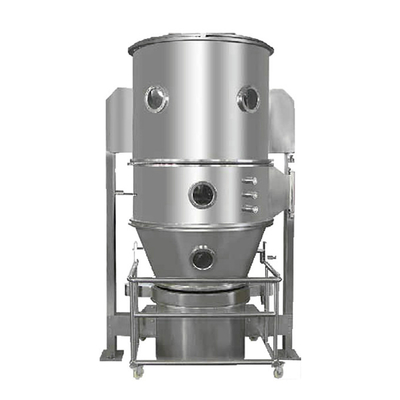

Multifunctional fluid bed dryer paraffin wax granulator machine pp granulation machine
RELA FL Fluid Bed Dryer Granulator is used to make granule from powder with binder, and to dry the granule at the same time. This machine can make dry granule from dry powder in one same chamber by one step. It is applicable for Pharmaceutical Industry, Foodstuff Industry, Spice Industry, Chemical Industry, etc.
Working Principle
The powder granule in container (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Technical Parameters
Model | Capacity (kg) | Fan motor (kw) | Steam consumption (kg/h) | Steam Pressure (MPa) | Temperature (℃) | Working Time (min) | Compressed air consumption (m3/min) |
FL-3 | 3 | 3 | 15 | 0.1-0.4 | Max.120 | 45-90 | 0.9 |
FL-5 | 5 | 4 | 23 | 0.9 | |||
FL-15 | 15 | 5.5 | 42 | 0.9 | |||
FL-30 | 30 | 7.5 | 70 | 0.9 | |||
FL-60 | 60 | 11 | 141 | 1 | |||
FL-120 | 120 | 18.5 | 211 | 1 | |||
FL-200 | 200 | 30 | 282 | 1.1 | |||
FL-300 | 300 | 37 | 366 | 1.5 | |||
FL-500 | 500 | 45 | 451 | 3 | |||
FL-1000 | 1000 | 90 | 750 | 4 |
WUXI RELA PHARMA MACHINERY CO.,LTD,with more than 10 years experience,is focused on the powder solution,from the unit machine to the production line.Our main products are Pulverizer,Mixing Machine,Conveying Machine,Sifting Machine,Granulator,Dryer,etc.,which are application to pharmaceutical,foodstuff,food additives,chemical raw material,baking ingredients,etc.
'RELA' Machinery:
Refine Quality &Service:as quality and service is the basis of a company we are striving to improve our product quality and provide better service to our customers.
Efficiency makes benefit.
Learning and innovation is the way of success.
Attitude decides everything.
